Contact us now ›R 1100d
Tracked
Impact Crusher
44" x 29"
1100 x 720 mm
Inlet opening
up to 380 t/h
depending on material
38,00t
83.700 lbs
Weight incl. screening system
R 1100d
The flexible crusher with high throughput!
- Tier 4 Final / STAGE V Engine - 280kW / 380HP
- DUPLEX-OPTION: Change the impact with the jaw crusher on one machine in less than few hours.
- Hydrostatic crusher drive for consistent throughput
- Individually & hydraulically adjustable 2 swing beams
- Unique double-functional return- or stockpile belt
- Optional Air Blower for seperation of light non-mineral materials
The tracked impact crusher R 1100d is based on Rockster's hydraulic concept and guarantees profitable and flexible recycling of
asphalt, concrete and any type of demolition debris. Moreover it is equipped with a powerful rotor, which makes it ideal for processing natural stone.
Previous
Next
R 1100d
Technical refinements for an optimal crushing process
Central machine control with a fully authomatic monitoring
Sophisticated and easy-to-use multifunctional color display with various quick start functions (Different settings for a variety of applications)

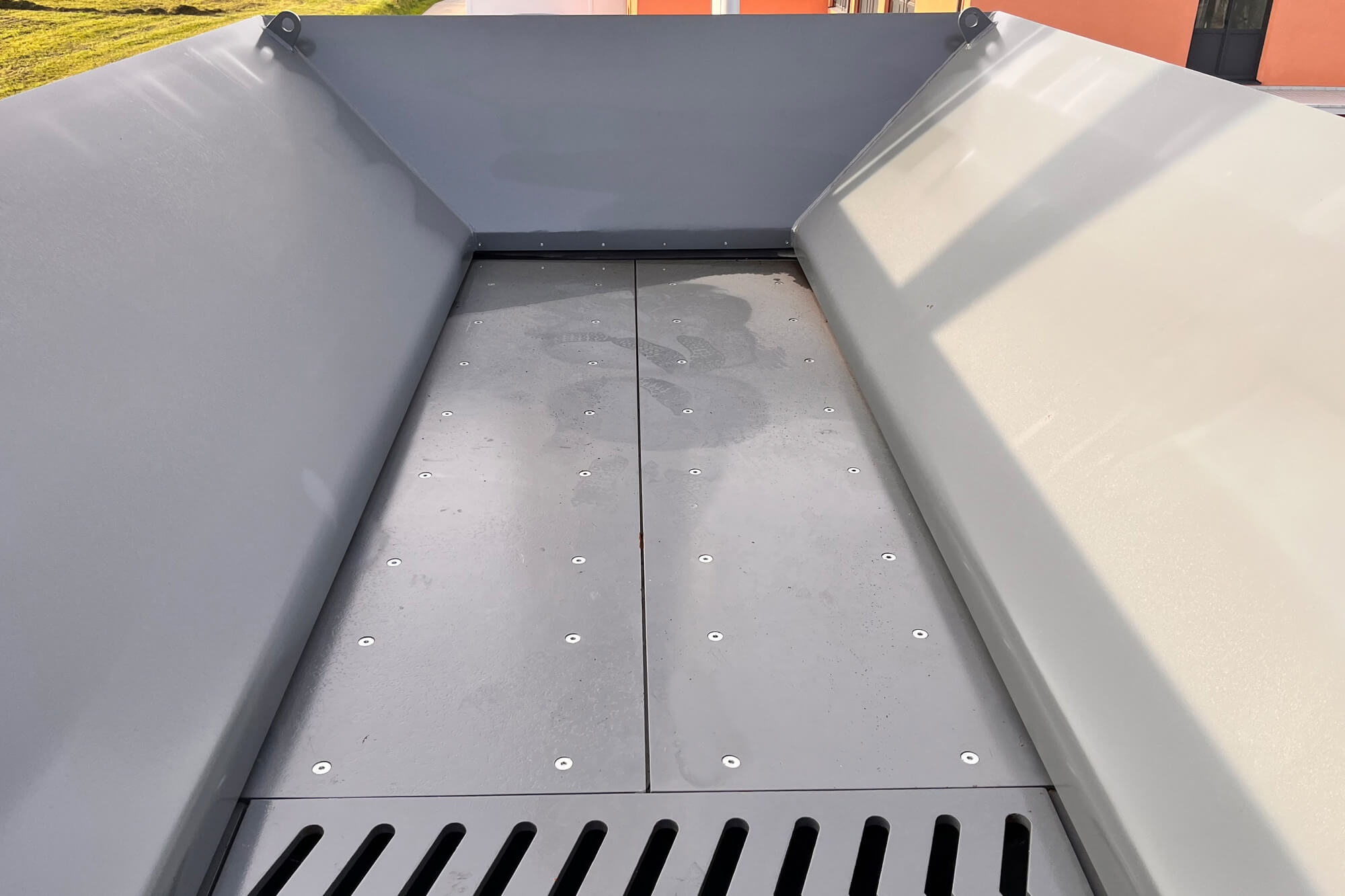

Feed hopper
Hardox
Vibration chute with 2-deck pre-screening
Zig zag (or bar screen)
Bypass
Easy switch with a hand lever
Side belt

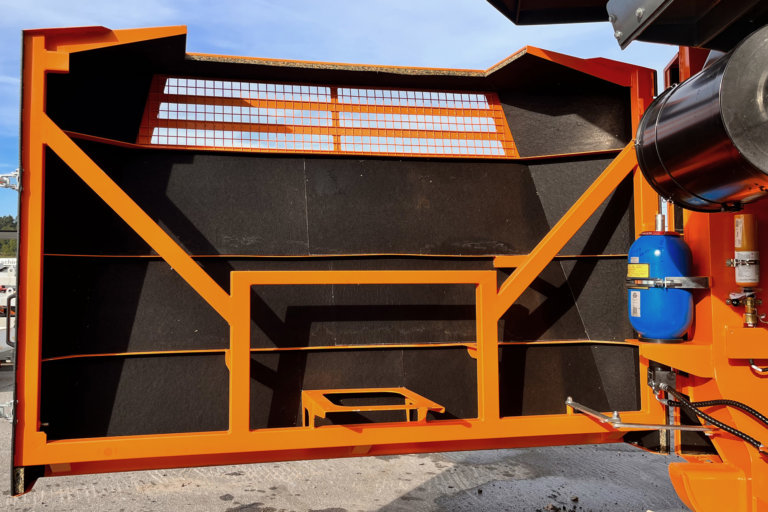

Sound-insulated engine compartment
Magnetic separator
Height hydraulically adjustable
Crusher overload protection
Dust supression system
At the crusher inlet & outlet
R 1100d
Options
RS114S Screen box and RB95 double-functional return-/ stockpile belt
Optimal option for production of 100% defined end-product
Air Blower RVB1700
Efficiently separate light non-aggregates such as plastic, paper, textile, cardboard, wood, ythong, styrofoam, which results in a cleaner and higher quality final product.
DUPLEX-System - 2 in 1
The hydrostatic drive system allows a clockwise or anticlockwise operation of the crusher so it is possible to install both impact and jaw crushing units onto the same basic frame.
Belt weigh scale
Measuring of the performance on the discharge conveyor (t/h). Printer included.
Air compressor
Ideal for cooler cleaning. Connected to machine hydraulic.
Reflector
Increases visibility that reduces risk of injury at the crushing site.
Central lubrication system
Fully automatic lubrication system with integrated electronic control.
Water pump
Water supply for dust suppression.
R 1100d
Job Stories & Videos
R 1100d
Technical data
Key facts & Performance
Key facts & Performance
| Inlet opening: | 1100 x 720 mm / 44“ x 29“ | |
| Impact circle diameter: | 1020 mm / 40“ | |
| Rotor equipment: | 4 blow bars | |
| Crushing ration: | 1:10 – 1:50 | |
| Performance: | up to 380 t/h / 420 st/h | |
| Rotor speed (continuously adjustable): | up to 850 rpm | |
| Weight: | 10,200 kg / 22.500 lbs | |
| Drive unit: | hydrostatic | |
| Gap adjustment (adjusted on display): | fully hydraulic | |
| Dust suppression: | At the crusher inlet & outlet |
Transport Dimensions
Transport Dimensions
| Length: | 13,60 m / 44'8" |
| Width: | 2,75 m / 9'1" |
| Height: | 3,45 m / 11'4" |
| Weight: | 33,40 t / 73,700 lbs |
Transport Dimensions with Screening System
Transport dimensions with RS114S & RB95
| Length: | 15,80 m / 51'10" |
| Width: | 2,99 m / 9'10" |
| Height: | 3,45 m / 11'4" |
| Weight: | 38,00t 83.700 lbs |
