Track-mounted
Scalping Screen

10' x 4' / 3,0 x 1,2 m

Screen surface

5.9 yd³ / 4,5 m³

Hopper

34,400 lbs / 15,6 t

Weight

RSS 410

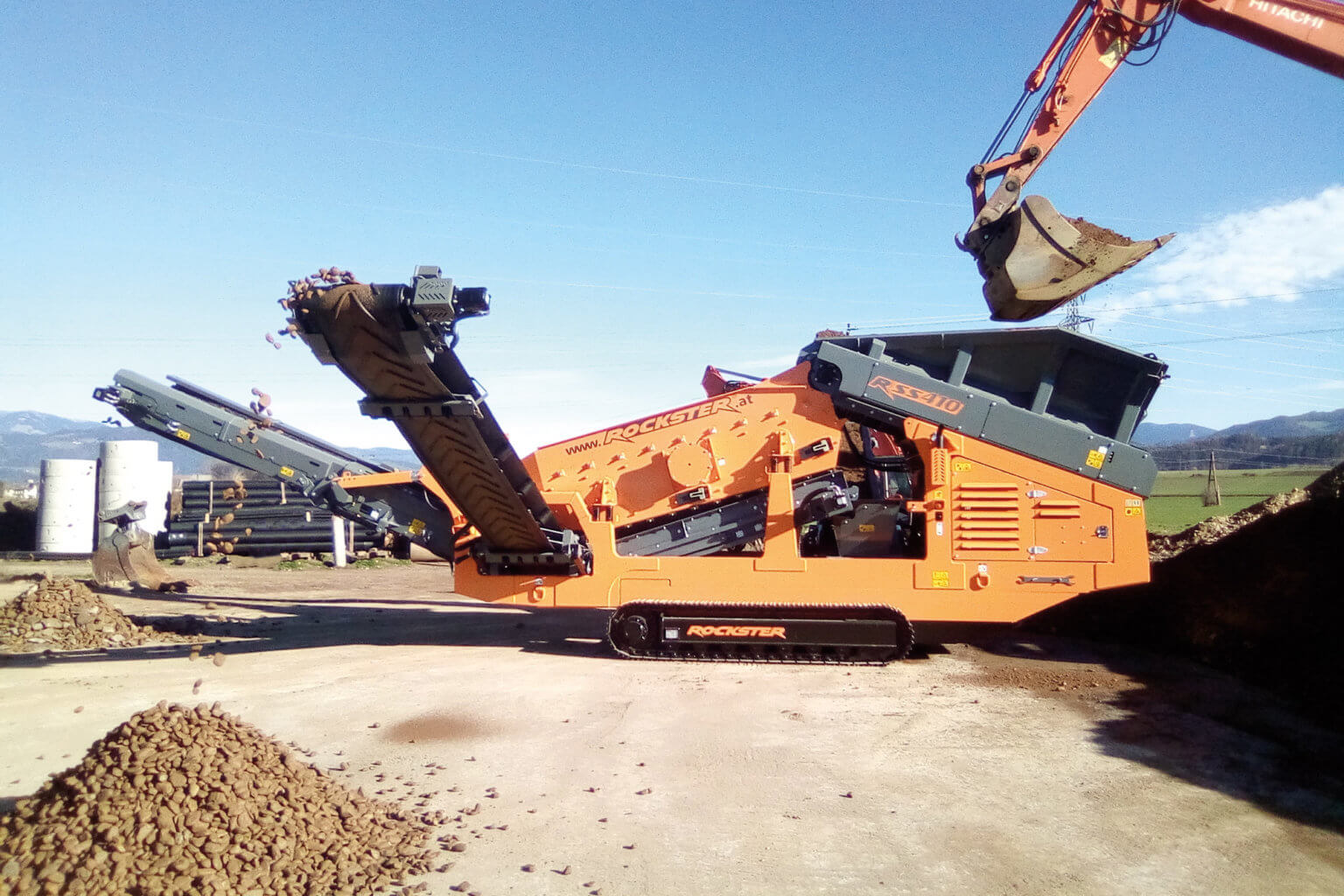

Compact Scalping Screen - Versatile Application Possibilities!

  • Tier 4 Final / STAGE V Engine - 50kW / 68PS
  • Short set-up time
  • Easy handling
  • Low loading height
  • Robust steel construction
  • Flip down hopper tailgate to allow direct feed from a crusher belt
  • Optimal transport dimensions
  • Hydraulically lowered oversize belt to facilitate access to the lower screen deck
  • Hydraulically foldable discharge belts
  • Easy access to the engine compartment
The RSS 410 is the perfect scalping screen for smaller and middle applications. It can be used for separating demolition debris, asphalt, concrete, bricks, coal, metal, soil, compost or natural stone.

compact transport size

RSS 410

Technical refinements for an optimal crushing process

Central machine control with a fully authomatic monitoring

Sophisticated and easy-to-use multifunctional color display with various quick start functions (Different settings for a variety of applications)

Feed hopper

Hardox

Vibration chute with pre-screening

Zig zag (or bar screen)

Bypass

Easy switch with a hand lever

Sound-insulated engine compartment

Magnetic separator

Crusher overload protection

Dust supression system

On the chamber inlet and outlet

Vibrating hardox discharge chute

No wear of the main belt, especially beneficial when crushing steel-reinforced concrete

RSS 410

Options

Oberes Deck: Maschensieb, Plattenrost, Fingersieb, Lochblech

Radio remote control

Overband magnet

  • Top deck:
    Finger tines, bofor bar punch plate or mesh
  • Radio remote control
  • Overband magnet

RSS 410

Job Stories & Videos

RSS 410

Technical data

Key facts & Performance

Key facts & Performance

Screen surface: 3,00 x 1,20 m / 10' x 4'
Screen angle: 15° fixed
Max. feed size: 400 mm / 16"
Performance: up to 250 t/h
Feeder belt - width: 1050 mm / 42"
Collection belt - width: 1050 mm / 42"
Tracks width: 300 mm / 12" (speed: 1km/h / 0,6 miles/h)
Drive unit: Tier 4 Final / STAGE V diesel engine

Transport Dimensions

Length:32'4" / 9,90 m
Width:2,35 m
Height:3,10 m / 10'2"
Weight:34,400 lbs / 15,6 t

Working dimensions

Length: 11,54 m / 37'10"
Width: 11,25 m / 36'11"
Height: 3,70 m / 12'2"
